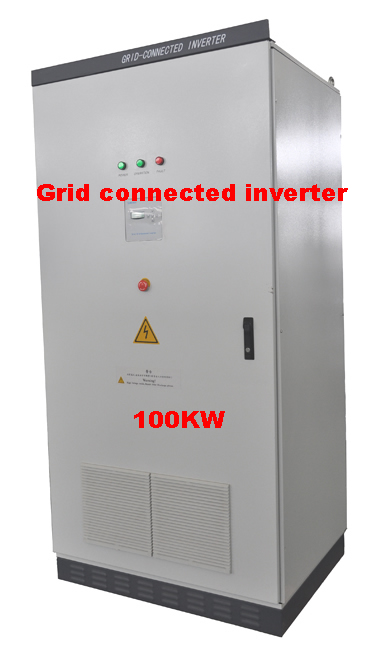

JAJE 100KW grid connected inverter

JAJE 100KW grid connected inverter

JAJE 100KW grid connected inverter

1. DC side ZVS BOOST circuit has lower power consumption and more reliable circuit.

2. network side is a multistage switch H-Brigde circuit, and the common mode voltage is very low, which is more suitable for the domestic rural power grid.

3. the highest efficiency of 98.7%, wide range input voltage;

4. built-in DC switch, easy to install and debug.

5. no transformer, no fan design, longer life;

6. multi-channel high efficiency MPPT technology, can be individually input, and can also directly cross link input;

7. big screen LCD monitoring, no need to set up;

8. IP65 design, outdoor installation;

JAJE 100KW grid connected inverterJAJE 100KW grid connected inverter

Model

JJNB-100KW

Isolation mode

Isolation of power frequency transformer

Maximum DC input power

110KWp

Maximum DC input voltage

850Vdc

Maximum point tracking (MPPT) voltage range

450Vdc-820Vdc@595Vdc

Connection mode

Terminal terminal

Maximum input current

245A

Rated AC output power

100KW

Maximum AC output power

110KW

Current harmonic THDi

<3% (rated power)

power factor

>0.99

Maximum efficiency

95%

European efficiency

93%

Rated output AC voltage

380VacThree-phase

Rated output AC frequency

50Hz

Permissible voltage range of power grid

310-450 Vac

Permissible power grid frequency range

47.5-51.5Hz

Self power consumption at night

<100W

Automatic delivery conditions

DC input and power grid meet requirements, inverter automatic operation

Automatic restart time after power failure

5min(Adjustable)

Protection function

Polarity reverse connection, short circuit, island, overheating, overload, grounding fault protection, etc.

communication interface

RS485

working temperature

-25℃-+55℃

relative humidity

0-95%,Not frosting

Poster height

2000米(More than 2000 meters need to be reduced.)

Cooling mode

Forced air cooling

noise

≤60dB

Protection grade

IP20(indoor)

Size (L*W*H,mm)

1000*800*2060
